Machinery Rental
AquaSoli offers rental services for different kind of machines

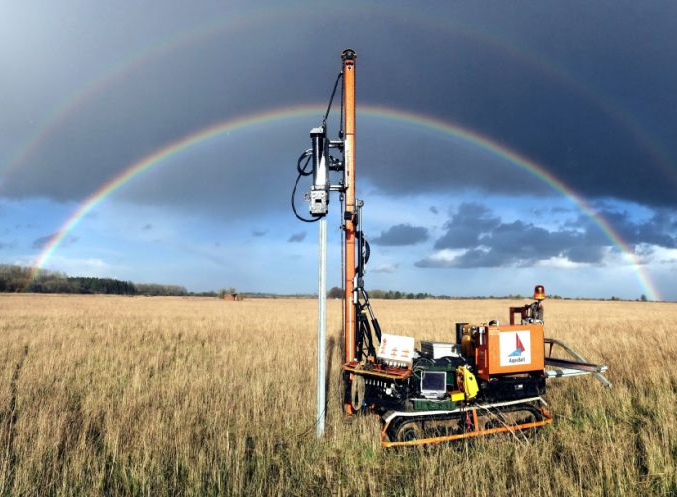

PILE DRIVER MACHINE GAYK HRE-1000 / Upgraded
(quasi equivalent to HRE-3000)
Available for long or short term lease
AquaSoli Engineering Services has available for immediate long or short term lease, an upgraded Gayk 1000 hydraulic pile driving machine. The upgraded GAYK HRE-1000 can be readily transported to destinations throughout Europe and other destinations (e.g. Middle East region)
Upgraded GAYK 1000 Technical Data:
Transport Length = ca. 5000 mm / 16.39 ft
Transport Width = 2000 mm / 6.56 ft
Transport Height = 2500 mm / 8.20 ft
Weight with hammer = ca. 3400 kg / 8069 lbs
Weight of hammer = 76 kg / 169 lbs
Maximum Length of posts to be rammed = 4200 mm / 13.7 ft
Oil Tank = 180 l /47.49 gal
Diesel Tank = 60 l / 15.83 gal
Motor Hatz = 3L43C
Max. Power = 34.1 kW / 45.7 hp
Electric System Voltage 12V

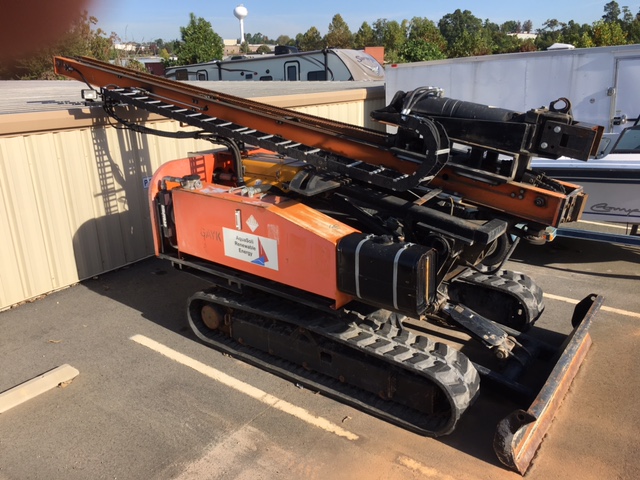

PILE DRIVER MACHINE GAYK HRE-6000
Available for long or short term lease
AquaSoli Engineering Services has available for immediate long or short term lease, an upgraded Gayk 6000 hydraulic pile driving machine. The GAYK 6000 is currently located in Mooresville, North Carolina and can be readily transported to destinations throughout the U.S and Canada. Overseas arrangements will also be considered on a case by case basis.
GAYK 6000 Technical Data:
Transport Width = 2020 mm / 6.8 ft
Transport Height = 2480 mm / 8.2 ft
Weight with hammer = 7000 kg / 15430 lbs
Weight of hammer = 188 kg / 417 lbs
Maximum Length of posts to be rammed = 6000 mm / 19.67 ft
Oil Tank = 180 l /47.49 gal
Diesel Tank = 60 l / 15.83 gal
Motor Hatz = 3L43C
Max. Power = 34.1 kW / 45.7 hp
Electric System Voltage 12V
For more information contact Peter Heim at +1-704-696-8400 or Peter.Heim@AquaSoli.com
EXCAVATOR JCB
FOR "ROCK DRILLING", "SCREWING" AND "PILOT HOLES"
Available for long or short term lease
AquaSoli Engineering Services has available for immediate long or short term lease, a JCB, earth screw / helical pile drilling machine with changeable attachments for rock drilling and hammering pilot holes.
The JCB drilling machine is currently located in Little Falls, Minnesota and can be readily transported to destinations throughout the U.S and Canada. Overseas arrangements will also be considered on a case by case basis.
JCB Technical Data:
Transport Width = 2211 / 7.25 ft
Transport Height = 2593 / 8.5 ft
Maximum Length of posts to be screwed = 2745 mm / 9.0 ft
Transport Weight = 4950 kg / 11,000 lbs
Engine Power = 31. kW / ca. 41.5 hp
System Voltage = 12V
For more information contact Peter Heim at +1-704-696-8400 or Peter.Heim@AquaSoli.com.

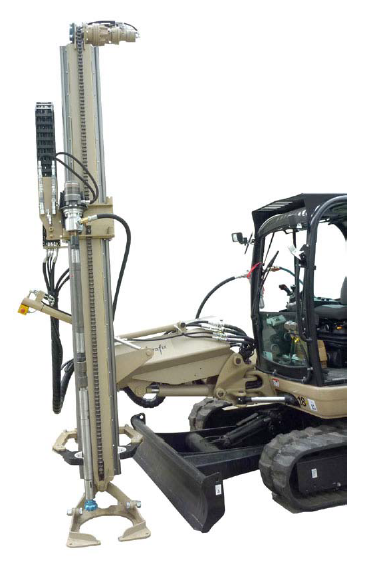

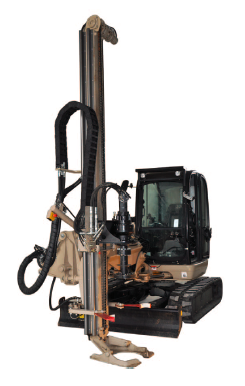

JCB shown with "Rock Drilling" Attachment
The JCB Drilling machine can be outfitted with varying size bit attachments allowing holes up to 8 inches to be drilled into rock to a depth of six feet. An additional tow behind (minimum 185cfm) compressor is required for operation.

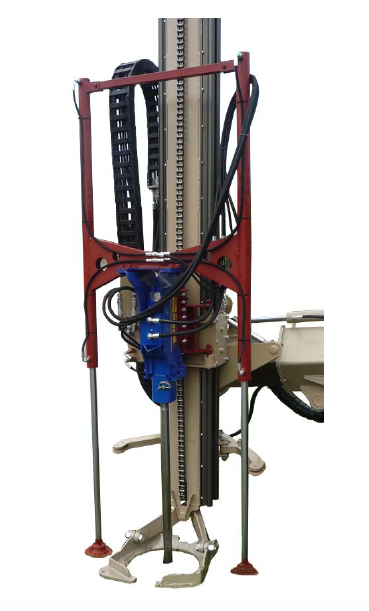

JCB shown with "Pilot Hole" Attachment
The JCB “Pilot Hole” attachment can create pilot holes in stiff earth up to 2 inches in diameter to a depth of 30 inches.
